SOCKET PROGRAMMING ON UNIX - RAW SOCKETS(PART 2/3)

2020-06-08

In the previous part of this tutorial we discussed what TCP sockets actually are and how to use them on Linux systems. Now we are ready to introduce a new concept of network programming: raw sockets.

Raw sockets

When you declare a new socket using socket()s Linux API, you are in fact delegating the kernel to take care of all the details about encoding and decoding the headers of your packages. Stream sockets(TCP) and Datagram sockets(UDP) operate in the transport layer, in which packages contain only the payload(i.e., the actual data) and no header. If you think about what we have done in the previous part of this tutorial, this makes perfect sense: we declared a new SOCK_STREAM(TCP) socket and then, we just transmitted/received the actual data(payload) without worrying about any other detail. However, in some circumstances, you are forced to write a slightly different implementation of the TCP protocol(or any other protocol); in such cases you can use raw sockets.

>
A raw socket allows new IPv4 protocols to be implemented in user space. A raw socket deals with raw packages(i.e. the whole package, containing both payload and header) and does not operate on the transport layer.
-- Wikipedia

To put it simple, raw sockets allow a system programmer, to receive the whole package and not only the payload. Since using raw sockets forces you to manually parse packages header, you don't need to use them for any general purpose network-based software. There are only limited use-cases where it makes sense to re-implements some part of the TCP/IP stack; in this part of the guide we will see how to develop a very simple packet sniffer. Since a packet sniffer needs to analyze the entire packages entering our system(promiscuous mode), this is the right time to use raw sockets.

Packet filter

Basically, a packet sniffer will perform the following tasks:

Create a raw socket;
Receive packets through the recvfrom(2) function;
Decode raw packets by printing TCP/IP header values and payload content.

Let's try to do it in C! Do note that the following implementation is a slightly different version of another tutorial[1].

Inside the main function, we need to create a raw socket, a buffer to store data and, finally, we can call the recvfrom(2) function to start retrieving data. We also open a text file to store packets content.


int main(int argc, char **argv) {
     int raw_sock = 0, psize = 0; // Raw socket file descriptor and packet size
     unsigned char *buf = (unsigned char*)malloc(BUF_SIZE);

     // Create a raw socket(TCP socket only)
     raw_sock = socket(PF_INET, SOCK_RAW, IPPROTO_TCP);
     if(raw_sock == -1) {
          perror("Unable to create raw socket");
          return 1;
     }

     // Try to open log file
     FILE *log_file = fopen(argv[1], "w");
     if(log_file == NULL) {
          perror("Unable to open logfile");
          return 1;
     }


     // Continue retrieving packages
     for(;;) {
          psize = recvfrom(raw_sock, buf, BUF_SIZE, 0, NULL, NULL);
          if(psize == -1) {
               perror("Unable to retrieve data from socket");
               return 1;
          }
          // Extract information from raw packages and print them
          decode_packet(buf, psize, log_file);
     }

     return 0;
}

Each time we get a new packet, we call our decode_packet function which basically will extract TCP/IP header information and will print them on the log file. The full source code is listed below:


#include <stdio.h> // printf, puts, perror
#include <stdlib.h> // malloc
#include <string.h> // memset
#include <unistd.h> // close syscall
#include <netinet/tcp.h> // TCP header
#include <netinet/udp.h> // UDP header
#include <netinet/ip_icmp.h> // ICMP header
#include <netinet/ip.h> // IP header
#include <sys/socket.h> // Socket's APIs
#include <arpa/inet.h> // inet_ntoa
#include <signal.h> // signal

/*
* Simple TCP packet sniffer.
* Inspired by https://www.binarytides.com/packet-sniffer-code-c-linux/
* Compile it with gcc -Wall -Wextra -Werror sniffer.c -o sniffer
*/

#define BUF_SIZE 65536

static void decode_packet(unsigned char *buf, size_t length, FILE *lf);
static void print_content(unsigned char *buf, size_t length, FILE *lf);

void sigint_handler() {
     // Exit gracefully. This ensures that the kernel
     // will close the log file and will free other resources
     exit(0);
}

int main(int argc, char **argv) {
     int raw_sock = 0, psize = 0; // Raw socket file descriptor and packet size
     unsigned char *buf = (unsigned char*)malloc(BUF_SIZE);

     if(argc != 2) {
          printf("Usage: %s <FILE>\n", argv[0]);
          return 1;
     }

     // Try to open log file
     FILE *log_file = fopen(argv[1], "w");
     if(log_file == NULL) {
          perror("Unable to open logfile");
          return 1;
     }

     // Create a raw socket(TCP socket only)
     raw_sock = socket(PF_INET, SOCK_RAW, IPPROTO_TCP);
     if(raw_sock == -1) {
          perror("Unable to create raw socket");
          return 1;
     }

     // Ensure that a SIGINT will cause a gracefully exit.
     // Any other signal may not correctly free allocated resources
     // such as the logfile, buffer and the raw socket.
     signal(SIGINT, sigint_handler);

     puts("Starting...");

     // Continue retrieving packages
     for(;;) {
          psize = recvfrom(raw_sock, buf, BUF_SIZE, 0, NULL, NULL);
          if(psize == -1) {
               perror("Unable to retrieve data from socket");
               return 1;
          }
          // Extract information from raw packages and print them
          decode_packet(buf, psize, log_file);
     }

     return 0;
}

// Decode function, used to print TCP/IP header and payload
void decode_packet(unsigned char *buf, size_t length, FILE *lf) {
     fprintf(lf, "\n\n################### TCP PACKET ###################");
     // Print IP header first
     struct iphdr *ip_head = (struct iphdr*)buf;
     struct sockaddr_in ip_source, ip_dest;
     unsigned short ip_head_len = ip_head->ihl*4;
     static int packet_count = 0;

     memset(&ip_source, 0, sizeof(ip_source));
     memset(&ip_dest, 0, sizeof(ip_dest));
     ip_source.sin_addr.s_addr = ip_head->saddr; // Get source IP address
     ip_dest.sin_addr.s_addr = ip_head->daddr; // Get destination IP address

     fprintf(lf, "\nIP header\n");
     fprintf(lf, "   Version              : %d\n", (unsigned int)ip_head->version);
     fprintf(lf, "   HELEN                : %d Bytes\n", ((unsigned int)(ip_head->ihl))*4);
     fprintf(lf, "   TOS                  : %d\n", (unsigned int)ip_head->tos);
     fprintf(lf, "   Total length         : %d Bytes\n", ntohs(ip_head->tot_len));
     fprintf(lf, "   Identification       : %d\n", ntohs(ip_head->id));
     fprintf(lf, "   Time-To-Live         : %d\n", (unsigned int)(ip_head->ttl));
     fprintf(lf, "   Protocol             : %d\n", (unsigned int)(ip_head->protocol));
     fprintf(lf, "   Checsum              : %d\n", (unsigned int)(ip_head->check));
     fprintf(lf, "   Source IP            : %s\n", inet_ntoa(ip_source.sin_addr));
     fprintf(lf, "   Destination IP       : %s\n", inet_ntoa(ip_dest.sin_addr));

     // Print TCP header
     struct tcphdr *tcp_head = (struct tcphdr*)(buf + ip_head_len);

     fprintf(lf, "\nTCP header\n");
     fprintf(lf, "   Source port          : %u\n", ntohs(tcp_head->source));
     fprintf(lf, "   Destination port     : %u\n", ntohs(tcp_head->dest));
     fprintf(lf, "   Sequence number      : %u\n", ntohl(tcp_head->seq));
     fprintf(lf, "   Ack number           : %u\n", ntohl(tcp_head->ack_seq));
     fprintf(lf, "   Header length        : %u Bytes\n", (unsigned int)tcp_head->doff*4);
     fprintf(lf, "   UFLAG                : %u\n", (unsigned int)tcp_head->urg);
     fprintf(lf, "   AFLAG                : %u\n", (unsigned int)tcp_head->ack);
     fprintf(lf, "   PFLAG                : %u\n", (unsigned int)tcp_head->psh);
     fprintf(lf, "   RFLAG                : %u\n", (unsigned int)tcp_head->rst);
     fprintf(lf, "   SFLAG                : %u\n", (unsigned int)tcp_head->syn);
     fprintf(lf, "   FFLAG                : %u\n", (unsigned int)tcp_head->fin);
     fprintf(lf, "   Window               : %u\n", htons(tcp_head->window));
     fprintf(lf, "   Checksum             : %u\n", htons(tcp_head->check));
     fprintf(lf, "   urgent Pointer       : %u\n", htons(tcp_head->urg_ptr));
     fprintf(lf, "\n\t\t\t ..::: DATA :::..\n");

     // Print IP header content
     fprintf(lf, "IP header DATA\n");
     print_content(buf, ip_head_len, lf);

     // Print TCP header content
     fprintf(lf, "TCP header DATA\n");
     print_content(buf+ip_head_len, tcp_head->doff*4, lf);

     // Print PAYLOAD content
     fprintf(lf, "Payload DATA\n");
     print_content(buf+ip_head_len+tcp_head->doff*4, (length - tcp_head->doff*4-ip_head->ihl*4), lf);

     // We print to stderr since it is not buffered
     fprintf(stderr, "Captured %d TCP packet(s)\r", ++packet_count);
}

void print_content(unsigned char *buf, size_t length, FILE *lf) {
     for(size_t i = 0; i < length; i++) {
     if(i != 0 && i % 16 == 0) {
               fprintf(lf, "          ");
               for(size_t j = (i-16); j < i; j++) {
                    if(buf[j] >= 32 && buf[j] <= 128) { // print "printable" characters
                         fprintf(lf, "%c", (unsigned char)buf[j]);
                    } else {
                        fprintf(lf, "."); // Otherwise, add a dot
                    }
               }
               fprintf(lf, "\n");
          }

          if(i%16==0)
              fprintf(lf, "    ");
          fprintf(lf, " %02X", (unsigned int)buf[i]);

          if(i == (length-1)) {
               for(size_t j = 0; j < (15-1%16); j++)
               fprintf(lf, "    ");
               fprintf(lf, "          ");

               for(size_t j=(i-i%16); j <= 1; j++) {
                    if(buf[j] >= 32 && buf[j] <= 128)
                         fprintf(lf, "%c", (unsigned char)buf[j]);
                    else
                         fprintf(lf, ".");
               }
               fprintf(lf, "\n");
          }
     }
}

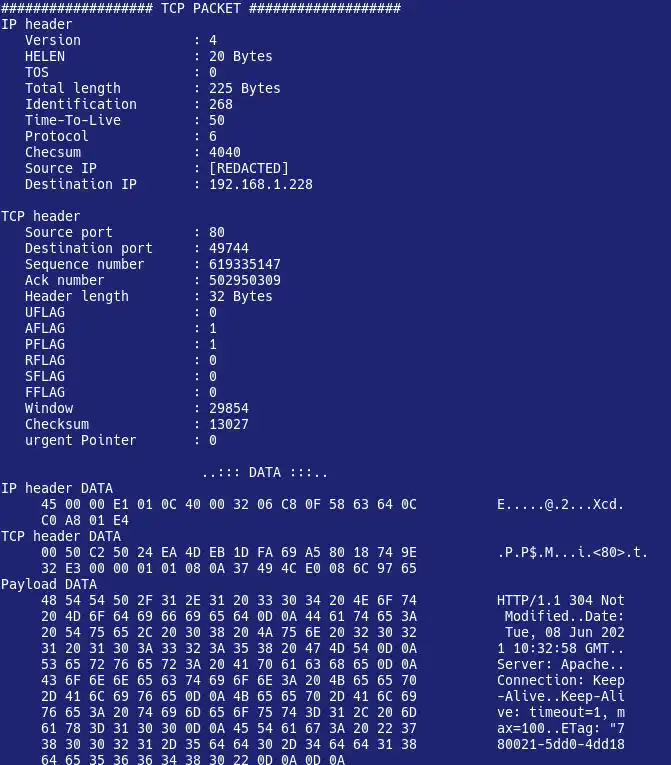

If we try to execute it(as root), we should be able to see a cli counter telling us how many packets has been captured; once we're satisfied, we can interrupt the program, and we can look at the content of the log file. Below there's a sample TCP packet captured by this tool during a plain HTTP communication with a website. tcpdump screenshot

As you can see from Payload Data section, we got an HTTP header, which confirms that the decoding process is working fine!

Conclusions

In the next and final part of this guide we will see how to implement a basic SYN TCP port scanner using raw sockets on Linux systems.
