SOCKET PROGRAMMING ON UNIX - TCP SYN PORT SCANNING(PART 3/3)

>

A port scanner is a tool designed to look for open ports on a remote server. These tools are mainly used by system administrators and security researchers to get an idea of which network services are being executed on a given host.

A quick overview of Nmap

$> nmap -p0- -v -A -T4 scanme.nmap.org
Starting Nmap 7.91 ( https://nmap.org ) at 2021-06-09 12:26 CEST
NSE: Loaded 153 scripts for scanning.
NSE: Script Pre-scanning.
Initiating NSE at 12:26
Completed NSE at 12:26, 0.00s elapsed
Initiating NSE at 12:26
Completed NSE at 12:26, 0.00s elapsed
Initiating NSE at 12:26
Completed NSE at 12:26, 0.00s elapsed
Initiating Ping Scan at 12:26
Scanning scanme.nmap.org (45.33.32.156) [2 ports]
Completed Ping Scan at 12:26, 0.17s elapsed (1 total hosts)
Initiating Parallel DNS resolution of 1 host. at 12:26
Completed Parallel DNS resolution of 1 host. at 12:26, 0.35s elapsed
Initiating Connect Scan at 12:26
Scanning scanme.nmap.org (45.33.32.156) [65536 ports]
Discovered open port 80/tcp on 45.33.32.156
Discovered open port 22/tcp on 45.33.32.156
Connect Scan Timing: About 8.18% done; ETC: 12:33 (0:05:48 remaining)
Stats: 0:00:57 elapsed; 0 hosts completed (1 up), 1 undergoing Connect Scan
Connect Scan Timing: About 14.86% done; ETC: 12:33 (0:05:27 remaining)
Connect Scan Timing: About 25.51% done; ETC: 12:33 (0:05:07 remaining)
Connect Scan Timing: About 33.58% done; ETC: 12:33 (0:04:27 remaining)
Connect Scan Timing: About 41.16% done; ETC: 12:33 (0:03:56 remaining)
Connect Scan Timing: About 49.22% done; ETC: 12:33 (0:03:21 remaining)
Connect Scan Timing: About 58.11% done; ETC: 12:33 (0:02:42 remaining)
Connect Scan Timing: About 66.19% done; ETC: 12:33 (0:02:10 remaining)
Connect Scan Timing: About 74.02% done; ETC: 12:33 (0:01:40 remaining)
Discovered open port 9929/tcp on 45.33.32.156
Connect Scan Timing: About 81.40% done; ETC: 12:33 (0:01:12 remaining)
Discovered open port 31337/tcp on 45.33.32.156
Connect Scan Timing: About 89.89% done; ETC: 12:33 (0:00:39 remaining)
Completed Connect Scan at 12:33, 386.55s elapsed (65536 total ports)
Initiating Service scan at 12:33
Scanning 4 services on scanme.nmap.org (45.33.32.156)
Completed Service scan at 12:33, 6.37s elapsed (4 services on 1 host)
NSE: Script scanning 45.33.32.156.
Initiating NSE at 12:33
Completed NSE at 12:33, 5.61s elapsed
Initiating NSE at 12:33
Completed NSE at 12:33, 0.71s elapsed
Initiating NSE at 12:33
Completed NSE at 12:33, 0.00s elapsed
Nmap scan report for scanme.nmap.org (45.33.32.156)
Host is up (0.17s latency).
Other addresses for scanme.nmap.org (not scanned): 2600:3c01::f03c:91ff:fe18:bb2f
Not shown: 65530 closed ports
PORT      STATE    SERVICE    VERSION
22/tcp    open     ssh        OpenSSH 6.6.1p1 Ubuntu 2ubuntu2.13 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
|   1024 ac:00:a0:1a:82:ff:cc:55:99:dc:67:2b:34:97:6b:75 (DSA)
|   2048 20:3d:2d:44:62:2a:b0:5a:9d:b5:b3:05:14:c2:a6:b2 (RSA)
|   256 96:02:bb:5e:57:54:1c:4e:45:2f:56:4c:4a:24:b2:57 (ECDSA)
|_  256 33:fa:91:0f:e0:e1:7b:1f:6d:05:a2:b0:f1:54:41:56 (ED25519)
25/tcp    filtered smtp
80/tcp    open     http       Apache httpd 2.4.7 ((Ubuntu))
|_http-favicon: Nmap Project
| http-methods:
|_  Supported Methods: GET HEAD POST OPTIONS
|_http-server-header: Apache/2.4.7 (Ubuntu)
|_http-title: Go ahead and ScanMe!
9929/tcp  open     nping-echo Nping echo
11211/tcp filtered memcache
31337/tcp open     tcpwrapped
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

NSE: Script Post-scanning.
Initiating NSE at 12:33
Completed NSE at 12:33, 0.00s elapsed
Initiating NSE at 12:33
Completed NSE at 12:33, 0.00s elapsed
Initiating NSE at 12:33
Completed NSE at 12:33, 0.00s elapsed
Read data files from: /usr/bin/../share/nmap
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 400.47 seconds

Port scanning techniques

ICMP scan

Half-Open TCP SYN scan

Three-way handshake proces

1. The client requests to establish a new TCP connection by sending a SYN(synchronized) packet to the remote host;
2. The server acknowledges the request by sending a SYN-ACK packet back to the client;
3. The client sends an ACK packet to complete the connection process.

TCP Connect scan

Stealthy scanning techniques

NULL scan

• URG: This flag informs the receiver that the data contained within the packet must be prioritized. Nowadays is quite obsolete, and honestly I did not find any real-world usage of it;
• ACK: Acknowledge the client that data has been received;
• PSH: When you send some data across a network, the transport layer waits to send the packet until the data segment has reached its maximum capacity. This is done to minimize the number of packets transmitted over a network(and so to avoid to jam the bandwidth). This is not desirable in all this situation where we want to send data as fast as possible(e.g., real time chatting applications such as Whatsapp, Telegram, etc.). To avoid this problem, we can set the PSH flag to 1 and the kernel will send out the packet as fast as possible;
• RST: Terminate the connection;
• SYN: Ask the remote server to establish a new connection;
• FIN: Ask the server to terminate the connection.

FIN scan

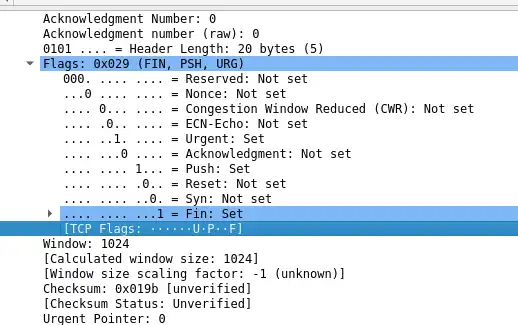

XMAS scan

Let's build a TCP SYN port scanner

1. Take an IP address/hostname and a list of ports from argv array;
2. For each port, start to sniff for SYN-ACK packets on another thread;
3. For each port, send a SYN packet;
4. Wait for a response(either open or closed port) from the child thread;

main.c

/* SPS:
 * A SYN TCP "Half-Open" port scanner written in C
 * This port scanner is made for educational purposes
 * and should not be used on production
 * environments. Refer to the following link for
 * further information: https://blog.marcocetica.com/posts/socket_tutorial_part3/
 *
 * Developed by Marco Cetica <ceticamarco@gmail.com> 2021
 */


#include <stdio.h> // printf, puts
#include <getopt.h> // getopt_long
#include <string.h> // memset
#include <stdlib.h> // malloc, atoi
#include <unistd.h> // close syscall
#include <ctype.h> // isdigit
#include <sys/socket.h> // socket APIs
#include <arpa/inet.h> // inet_ntoa
#include <netinet/tcp.h> // TCP header
#include <netinet/ip.h> // IP header
#include <netdb.h> // gethostbyname
#include <time.h> // for localtime
#include "src/scanner.h"
#define HELPER_MSG(name) printf("Try \"%s --help\" for more information.\n", name)
#define MAX_PORTBUF_SIZE 1024
#define BUF_SIZE 65536
#define DNS_SERVER "1.1.1.1"
#define DNS_SERVER_PORT 53
#define VERSION "0.0.1"
typedef enum {false, true} bool; // Implement bool type
// Private methods
static unsigned int parse_ports_list(char *port_list, int *formatted_port_list);
static const char *resolve_hostname(const char *address);
static void get_client_ip(char *ip_addr);

void helper() {
    puts("SPS is a SYN TCP port scanner for GNU/Linux systems\n"
         "-s, --hostname HOST           | Set hostname to scan\n"
         "-p, --ports <PORT1,PORT2,...> | Check if port is open\n"
         "-h, --help                    | Print this helper\n"
         "-a, --about                   | About this tool\n"
         "Example: ./sps -s scanme.nmap.org -p 22,80\n"
    );
}

int main(int argc, char **argv) {
    // Compute execution time
    double duration = 0.0;
    clock_t begin = clock();

    if(argc < 2) { // Check argument count
        HELPER_MSG(argv[0]);
        return 1;
    }

    int sock_fd = 0; // Raw socket file descriptor
    struct in_addr server_ip;
    int ports[MAX_PORTBUF_SIZE] = {0}; // Port to be scanned
    unsigned int p_count = 0;
    const char *host; // Target host
    char ip_addr[MAX_PORTBUF_SIZE]; // Local IP address
    int opt = 0;
    const char *short_opts = "p:s:ha";
    bool is_hostopt_enable = false, is_portopt_enable = false;
    struct option long_opts[] = {
        {"hostname", required_argument, NULL, 's'},
        {"ports", required_argument, NULL, 'p'},
        {"help", no_argument, NULL, 'h'},
        {"about", no_argument, NULL, 'a'},
        {NULL, 0, NULL, 0}
    };

    // parse command line parameters
    while((opt = getopt_long(argc, argv, short_opts, long_opts, NULL)) != -1) {
        switch (opt) {
        case 's': {
                // Check if host is null
                if(optarg[0] == '\0') {
                    printf("Error: \"-s\" parameter requires exactly one value.\n");
                    return 1;
                }
                // Save host parameter
                host = optarg, is_hostopt_enable = true;
            }
            break;
        case 'p': {
                // Check if port list is empty
                if(optarg[0] == '\0') {
                    printf("Error: \"-p\" parameter requires at least one value.\n");
                    return 1;
                }
                // Parse port list
                p_count = parse_ports_list(optarg, ports);
                is_portopt_enable = true;
            }
            break;
        case 'a':
            #ifdef __STDC_VERSION__
                printf("SRS - a SYN TCP port scanner for GNU/Linux systems.\n\
            Developed by Marco Cetica 2021\n\
                STDC_VERSION: %ld\n", __STDC_VERSION__);
            #else
                puts("SRS - a SYN TCP port scanner for GNU/Linux systems.\n\
                    Developed by Marco Cetica 2021\n");
            #endif
            return 0;

        case 'h':
            helper();
            return 0;

        case ':':
        case '?':
        default:
            return 1;
        }
    }

    // Check if both host and port options are specified
    if(is_hostopt_enable && is_portopt_enable) {
        // If host is a IPv4 address, store it
        if(inet_addr(host) != (in_addr_t)-1)
            server_ip.s_addr = inet_addr(host);
        else { // Otherwise, parse it first
            if(resolve_hostname(host) != NULL)
                server_ip.s_addr = inet_addr(resolve_hostname(host));
            else {
                printf("Unable to resolve host \"%s\"\n", host);
                return 1;
            }
        }

        // Open raw socket
        sock_fd = socket(AF_INET, SOCK_RAW, IPPROTO_RAW);
        if(sock_fd < 0) {
            perror("Unable to create socket");
            return 1;
        }

        // Prepare TCP/IP Header
        char datagram[DATAGRAM_BUF_SIZE];
        struct iphdr *ip_head = (struct iphdr*)datagram; // IP header
        struct tcphdr *tcp_head = (struct tcphdr*)(datagram + sizeof(struct ip)); // TCP header
        get_client_ip(ip_addr);
        setup_datagram(datagram, server_ip, ip_addr, ip_head, tcp_head);

        // Print some info on the terminal
        time_t t = time(NULL);
        struct tm tm_s = *localtime(&t);
        printf("Starting SPS %s at %d-%02d-%02d %02d:%02d CEST\n",
                VERSION,
                (tm_s.tm_year + 1900),
                (tm_s.tm_mon + 1),
                (tm_s.tm_mday),
                (tm_s.tm_hour),
                (tm_s.tm_min)
              );
        printf("PORT\t\tSTATE\n");

        // For each port, set header's parameters and send SYN packet to host
        for(size_t current_port = 0; current_port < p_count; current_port++) {
           if(scan_port(sock_fd, datagram, server_ip, ip_addr, tcp_head, ports[current_port]) != 0) {
               perror("Unable to send SYN packet");
               return 1;
           }
        }
        // Finally, close raw socket
        close(sock_fd);
    } else {
        printf("Error: both \"-p\" and \"-s\" must be specified.\n");
        HELPER_MSG(argv[0]);
        return 1;
    }

    clock_t end = clock();
    duration += (double)(end - begin) / CLOCKS_PER_SEC;
    printf("\nSPS done: %d ports scanned in %f seconds.\n", p_count, duration);

    return 0;
}

// Breaks "<PORT1,PORT2,...,PORTn>" into an array of integers
unsigned int parse_ports_list(char *port_list, int *formatted_port_list) {
    char *token, *next;
    const char *separator = ",";
    unsigned int count = 0;

    // Start parsing string
    token = strtok(port_list, separator);
    while(token != NULL) {
        // Check if token is a number
        strtol(token, &next, 10);
        if((next == token) || (*next != '\0')) {
            printf("Error: port parameter must contains numeric values only.\n");
            exit(1);
        } else
            formatted_port_list[count++] = atoi(token);
        // Get next value
        token = strtok(NULL, separator);
    }

    // Return number of ports for later usage
    return count;
}

// Convert a domain name into an IP address(IPv4).
const char *resolve_hostname(const char *address) {
    struct hostent *host;

    if((host=gethostbyname(address)) == NULL) // Get host struct
        return NULL;

    return inet_ntoa(*((struct in_addr*)host->h_addr));
}

// Retrieve IP address of client
void get_client_ip(char *ip_addr) {
    // To get local ip address, we can send a UDP packet
    // to a DNS server, wait for its reply and then
    // read the "sin_addr" field from the header of
    // the packet.
    int sock = socket(AF_INET, SOCK_DGRAM, 0);
    if(sock < 1) {
        perror("Unable to create UDP socket");
        exit(1);
    }

    struct sockaddr_in ip_client, name;
    memset(&ip_client, 0, sizeof(ip_client));

    // Configure the header
    ip_client.sin_addr.s_addr = inet_addr(DNS_SERVER);
    ip_client.sin_port = htons(DNS_SERVER_PORT);
    ip_client.sin_family = AF_INET;

    // Establish a new connection
    int res = connect(sock, (struct sockaddr*)&ip_client, sizeof(ip_client));
    if(res < 0) {
        perror("Unable to connect to remote host");
        exit(1);
    }

    socklen_t name_len = sizeof(name);
    res = getsockname(sock, (struct sockaddr*)&name, &name_len);
    if(inet_ntop(AF_INET, &name.sin_addr, ip_addr, INET_ADDRSTRLEN) == NULL) {
        perror("Unable to retrieve IP address of the client");
        exit(1);
    }

    // Close socket
    close(sock);
}

scanner.h

#ifndef SCANNER_H
#define SCANNER_H
#pragma once
#include <stdio.h> // printf, puts
#include <string.h> // memset
#include <stdlib.h> // malloc, atoi
#include <unistd.h> // close syscall
#include <sys/socket.h> // socket APIs
#include <arpa/inet.h> // inet_ntoa
#include <netinet/tcp.h> // TCP header
#include <netinet/ip.h> // IP header
#include <pthread.h> // pthread_{create,join}
#include "sniffer.h"
#define DATAGRAM_BUF_SIZE 4096
typedef enum {false, true} bool; // Implement bool type
// Needed for checksum computation
struct pseudo_header {
    unsigned int source_addr;
    unsigned int dest_addr;
    unsigned char plc;
    unsigned char prt;
    unsigned short tcp_len;
    struct tcphdr tcp;
};

struct target_header {
    struct in_addr target_ip;
    unsigned int target_port;
};

struct datagram_header {
    char datagram[DATAGRAM_BUF_SIZE];
    struct iphdr *ip_head;
    struct tcphdr *tcp_head;
};

void setup_datagram(char *datagram, struct in_addr server_ip, const char *client_ip, struct iphdr *ip_head,  struct tcphdr *tcp_head);
unsigned short scan_port(int sock_fd, char *datagram, struct in_addr server_ip, const char *client_ip, struct tcphdr *tcp_head, unsigned int target_port);
unsigned short compute_checksum(unsigned short *dgm, int bytes);


#endif

scanner.c

#include "scanner.h"
void setup_datagram(char *datagram, struct in_addr server_ip, const char *client_ip, struct iphdr *ip_head,  struct tcphdr *tcp_head) {
    // CLear datagram buffer
    memset(datagram, 0, DATAGRAM_BUF_SIZE);

    // Setup IP header
    ip_head->ihl = 5; // HELEN
    ip_head->version = 4;
    ip_head->tos = 0; // Type of service
    ip_head->tot_len = (sizeof(struct ip) + sizeof(struct tcphdr));
    ip_head->id = htons(36521);
    ip_head->frag_off = htons(16384);
    ip_head->ttl = 64;
    ip_head->protocol = IPPROTO_TCP;
    ip_head->check = 0;
    ip_head->saddr = inet_addr(client_ip);
    ip_head->daddr = server_ip.s_addr;
    ip_head->check = compute_checksum((unsigned short*)datagram, ip_head->tot_len >> 1);

    // Setup TCP header
    tcp_head->source = htons(46300); // Source port
    tcp_head->dest = htons(80);
    tcp_head->seq = htonl(1105024978);
    tcp_head->ack_seq = 0;
    tcp_head->doff = (sizeof(struct tcphdr) / 4);
    tcp_head->fin = 0;
    tcp_head->syn = 1; // Set SYN flag
    tcp_head->rst = 0;
    tcp_head->psh = 0;
    tcp_head->ack = 0;
    tcp_head->urg = 0;
    tcp_head->window = htons(14600); // Maximum window size
    tcp_head->check = 0;
    tcp_head->urg_ptr = 0;
}

unsigned short scan_port(int sock_fd, char *datagram, struct in_addr server_ip, const char *client_ip, struct tcphdr *tcp_head, unsigned int target_port) {
    struct sockaddr_in ip_dest;
    struct pseudo_header psh;

    // Create new thread
    pthread_t sniff_th;
    struct target_header th;
    if(pthread_create(&sniff_th, NULL, sniffer_thread_callback, &th) < 0) {
        perror("Unable to create sniffer thread");
        return 1;
    }

    // Save target IP and port for later usage
    th.target_ip = server_ip;
    th.target_port = target_port;

    // Setup packet info
    ip_dest.sin_family = AF_INET;
    ip_dest.sin_addr.s_addr = server_ip.s_addr;

    // Setup TCP header
    tcp_head->dest = htons(target_port); // Set target port
    tcp_head->check = 0;

    // Configure pseudo header(needed for checksum)
    psh.source_addr = inet_addr(client_ip);
    psh.dest_addr = ip_dest.sin_addr.s_addr;
    psh.plc = 0;
    psh.prt = IPPROTO_TCP;
    psh.tcp_len = htons(sizeof(struct tcphdr));

    // Copy TCP header into our pseudo header
    memcpy(&psh.tcp, tcp_head, sizeof(struct tcphdr));
    tcp_head->check = compute_checksum((unsigned short*)&psh, sizeof(struct pseudo_header));

    // Send packet to target
    if(sendto(sock_fd, datagram, sizeof(struct iphdr) + sizeof(struct tcphdr), 0, (struct sockaddr*)&ip_dest, sizeof(ip_dest)) < 0) {
        perror("Unable to send SYN packet");
        return 1;
    }

    // Wait for sniffer thread to receive a response
    pthread_join(sniff_th, NULL);

    return 0;
}

// Compute checksum of IP header
// Refer to https://www.ietf.org/rfc/rfc793.txt for reference
unsigned short compute_checksum(unsigned short *dgm, int bytes) {
    register long sum = 0;
    register short answer;
    unsigned int odd_byte;

    while(bytes > 1) {
        sum += *dgm++;
        bytes -= 2;
    }

    if(bytes == 1) {
        odd_byte = 0;
        *((unsigned char*)&odd_byte) = *(unsigned char*)dgm;
        sum += odd_byte;
    }

    sum = (sum >> 16) + (sum & 0xFFFF);
    sum += (sum >> 16);
    answer = (short)~sum;

    return answer;
}

sniffer.h

#ifndef SNIFFER_H
#define SNIFFER_H
#pragma once
#include <stdio.h> // printf, puts
#include <string.h> // memset
#include <stdlib.h> // malloc, atoi
#include <unistd.h> // close syscall
#include <sys/socket.h> // socket APIs
#include <arpa/inet.h> // inet_ntoa
#include <netinet/tcp.h> // TCP header
#include <netinet/ip.h> // IP header
#include "scanner.h"
#define BUF_SIZE 65536
enum status {
    CLOSED,
    OPEN
};

void *sniffer_thread_callback(void *ptr);


#endif

sniffer.c

#include "sniffer.h"
static void sniff_network(struct in_addr server_ip, const unsigned int port);
static void print_result(unsigned int port, enum status st);

void *sniffer_thread_callback(void *ptr) {
    struct target_header *th = ptr;

    sniff_network(th->target_ip, th->target_port);

    return (void*)NULL;
}

void sniff_network(struct in_addr server_ip, const unsigned int port) {
    int sock_raw;
    int saddr_size, data_size;
    struct sockaddr saddr;
    unsigned char *buf = (unsigned char*)malloc(BUF_SIZE);

    // Create new raw socket
    sock_raw = socket(AF_INET, SOCK_RAW, IPPROTO_TCP);
    if(sock_raw < 0) {
        perror("Unable to create socket");
        exit(1);
    }

    saddr_size = sizeof(saddr);

    // Start receiving packets
    data_size = recvfrom(sock_raw, buf, BUF_SIZE, 0, (struct sockaddr*)&saddr, (socklen_t*)&saddr_size);
    if(data_size < 0) {
        perror("Unable to receive packets");
        exit(1);
    }

    // Process data
    struct iphdr *ip_head = (struct iphdr*)buf;
    struct sockaddr_in source;
    unsigned short ip_head_len = ip_head->ihl*4;
    struct tcphdr *tcp_head = (struct tcphdr*)(buf + ip_head_len);
    memset(&source, 0, sizeof(source));
    source.sin_addr.s_addr = ip_head->saddr;

    if(ip_head->protocol == IPPROTO_TCP) {
        // Now check whether it's a SYN-ACK packet or not
        if(tcp_head->syn == 1 && tcp_head->ack == 1 && source.sin_addr.s_addr == server_ip.s_addr)
            print_result(port, OPEN);
        else
            print_result(port, CLOSED);
    }
    free(buf);
}

// Print the scan result just like Nmap
void print_result(unsigned int port, enum status st) {
    printf("%d/tcp\t\t%s\n", port, (st == OPEN ? "open" : "closed"));
}

Makefile

TARGET = sps
CC = gcc
CFLAGS = -Wall -Wextra -Werror -pedantic-errors -std=gnu11
LFLAGS = -lpthread

all: $(TARGET)

$(TARGET): main.o scanner.a sniffer.a
	$(CC) $(CFLAGS) $(LFLAGS) $^ -o $@

main.o: main.c
	$(CC) $(CFLAGS) -c $< -o $@

sniffer.a: sniffer.o
	ar rcs $@ $^

scanner.a: scanner.o
	ar rcs $@ $^

scanner.o: src/scanner.c src/scanner.h
	$(CC) $(CFLAGS) -c -o $@ $<

sniffer.o: src/sniffer.c src/sniffer.h
	$(CC) $(CFLAGS) -c -o $@ $<

clean:
	rm -f *.o *.a $(TARGET)

├── main.c
├── Makefile
└── src
├── scanner.c
├── scanner.h
├── sniffer.c
└── sniffer.h

$> make clean all

$> sudo ./sps -s scanme.nmap.org -p 80,22,9929,11211,31337
Starting SPS 0.0.1 at 2021-06-16 23:21 CEST
PORT                  STATE
80/tcp              open
22/tcp              open
9929/tcp        open
11211/tcp           closed
31337/tcp           open

SPS done: 5 ports scanned in 0.004033 seconds.
